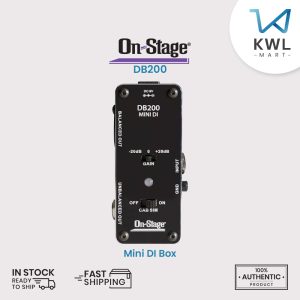

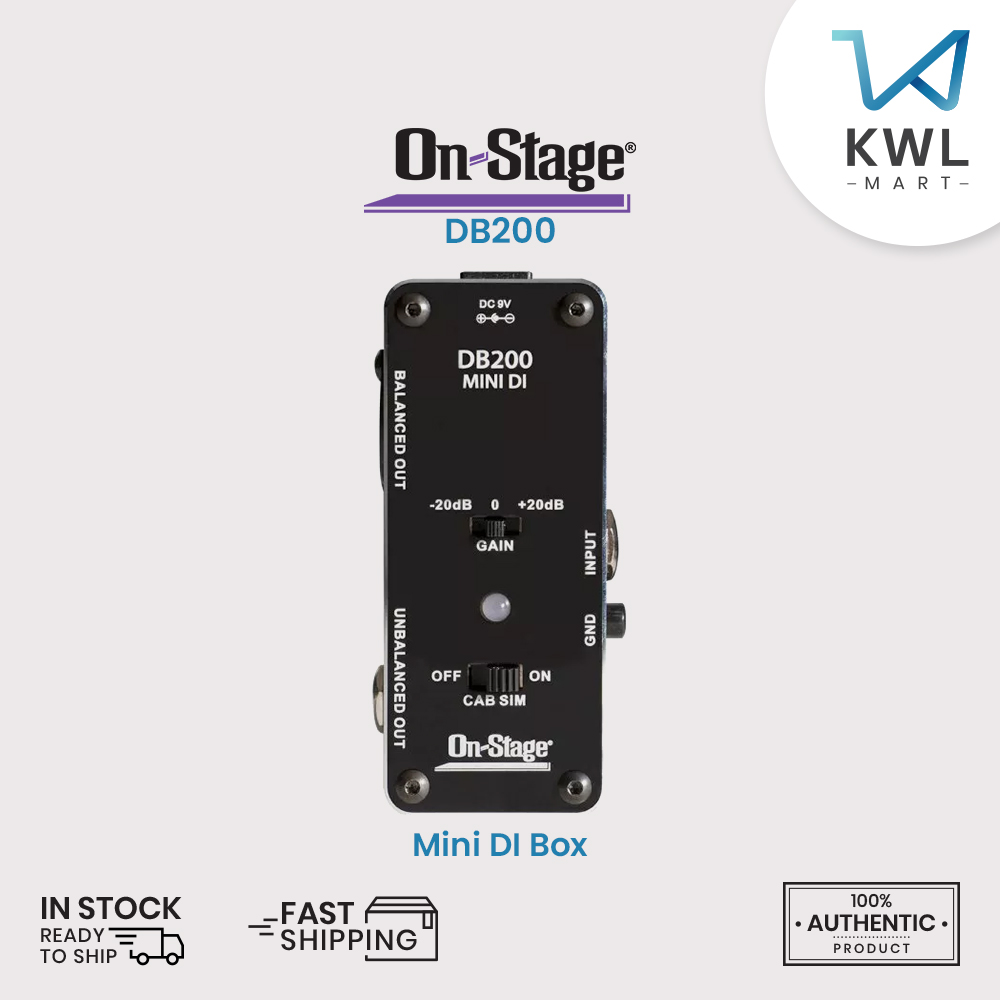

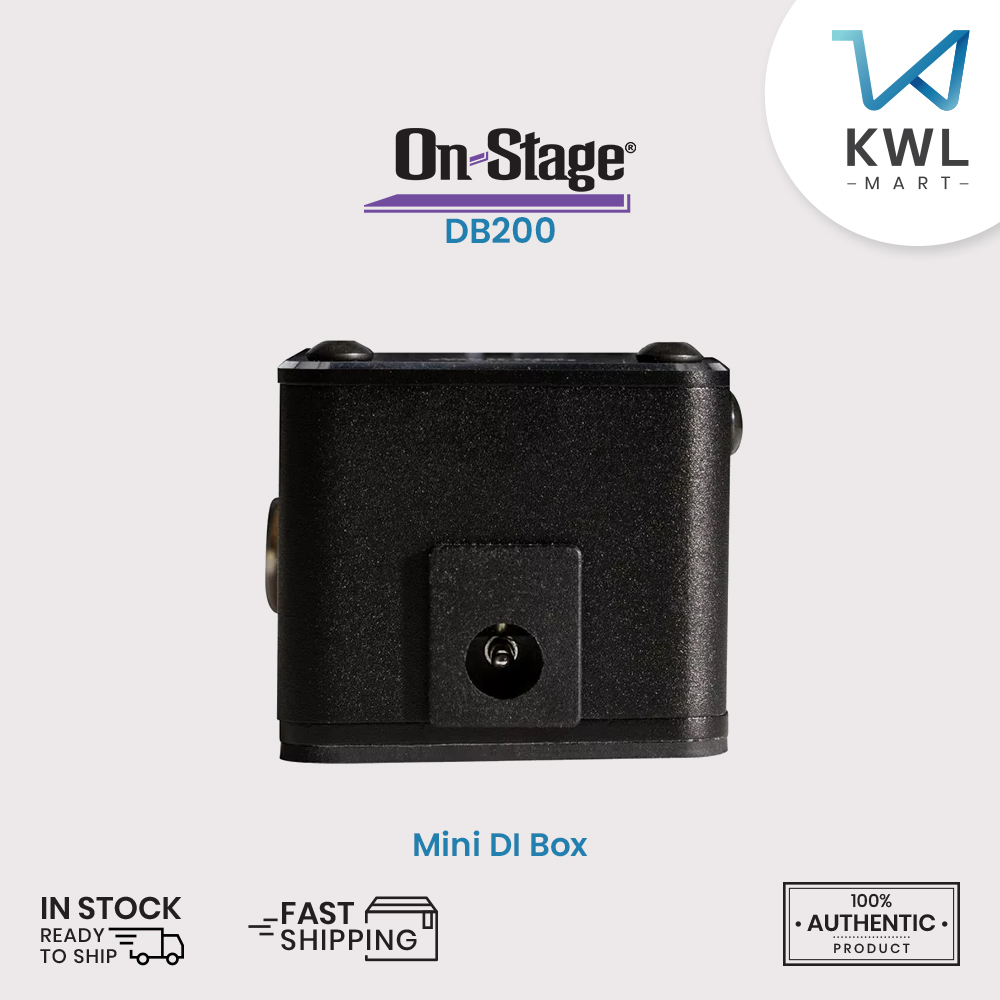

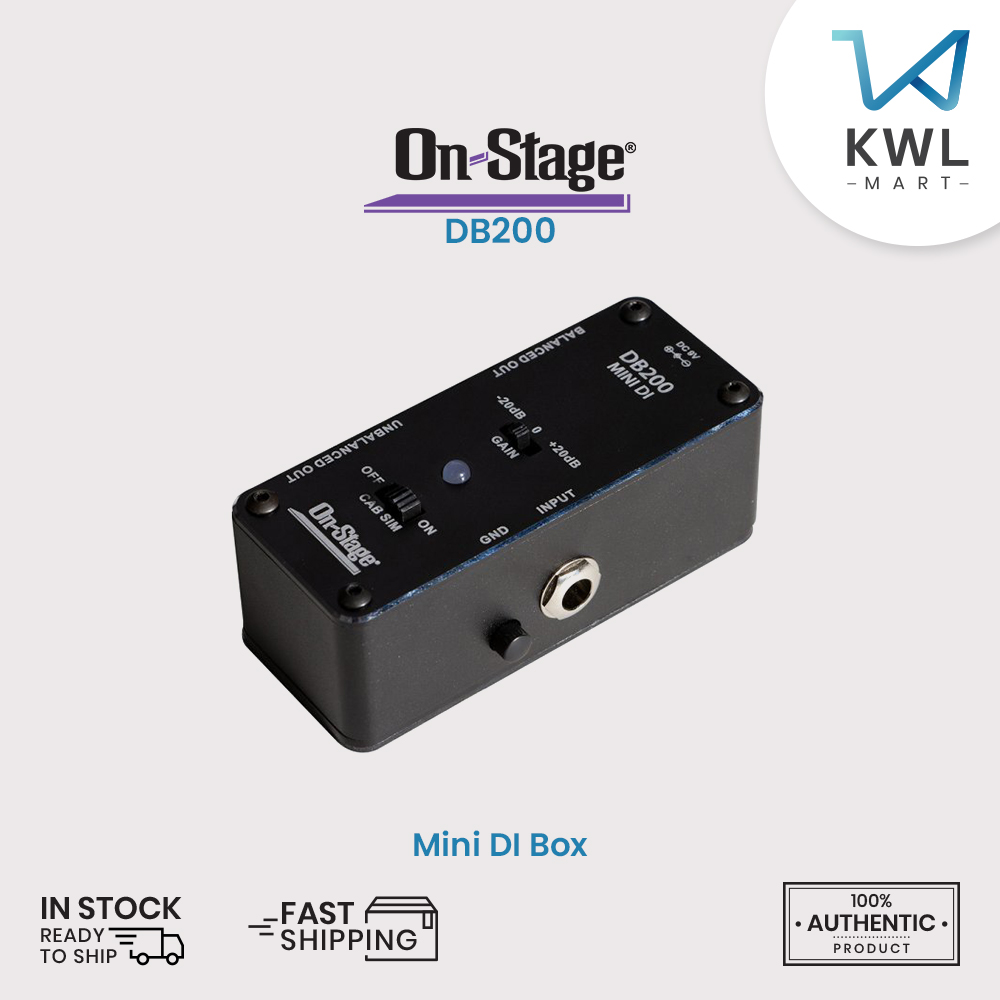

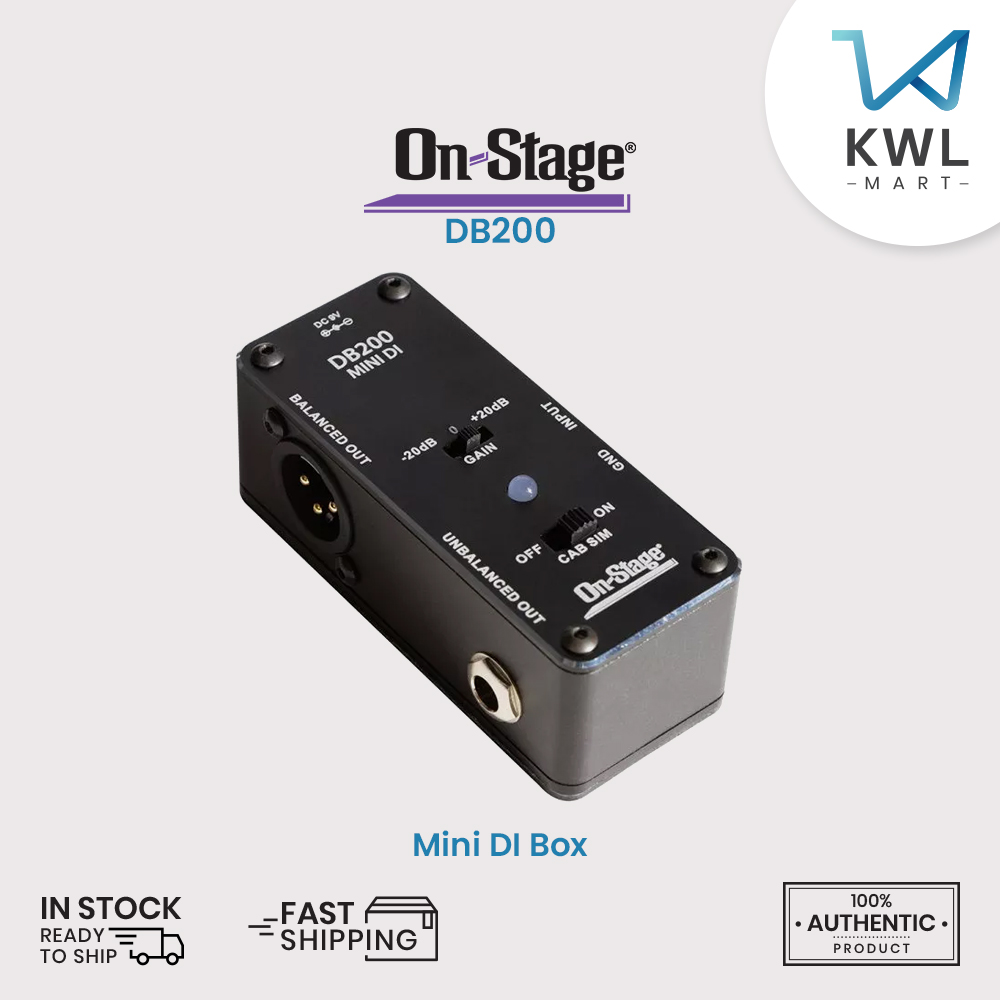

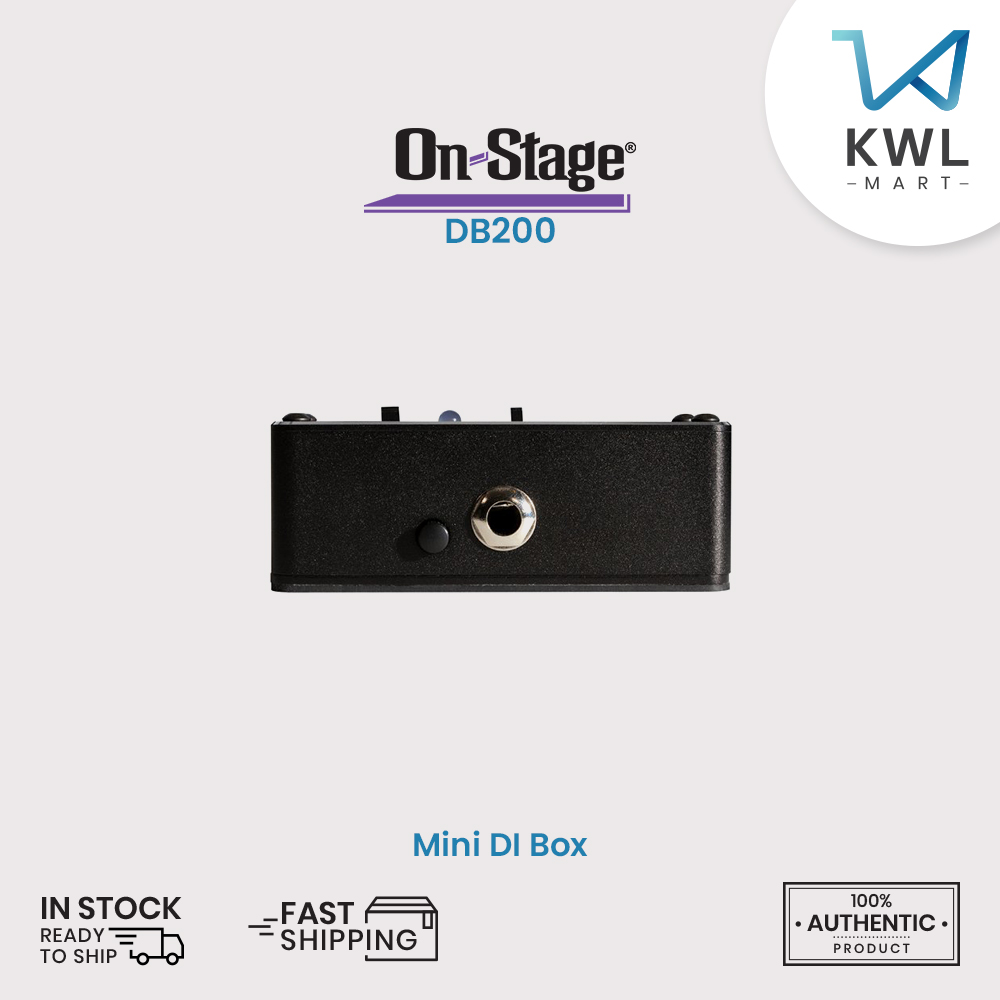

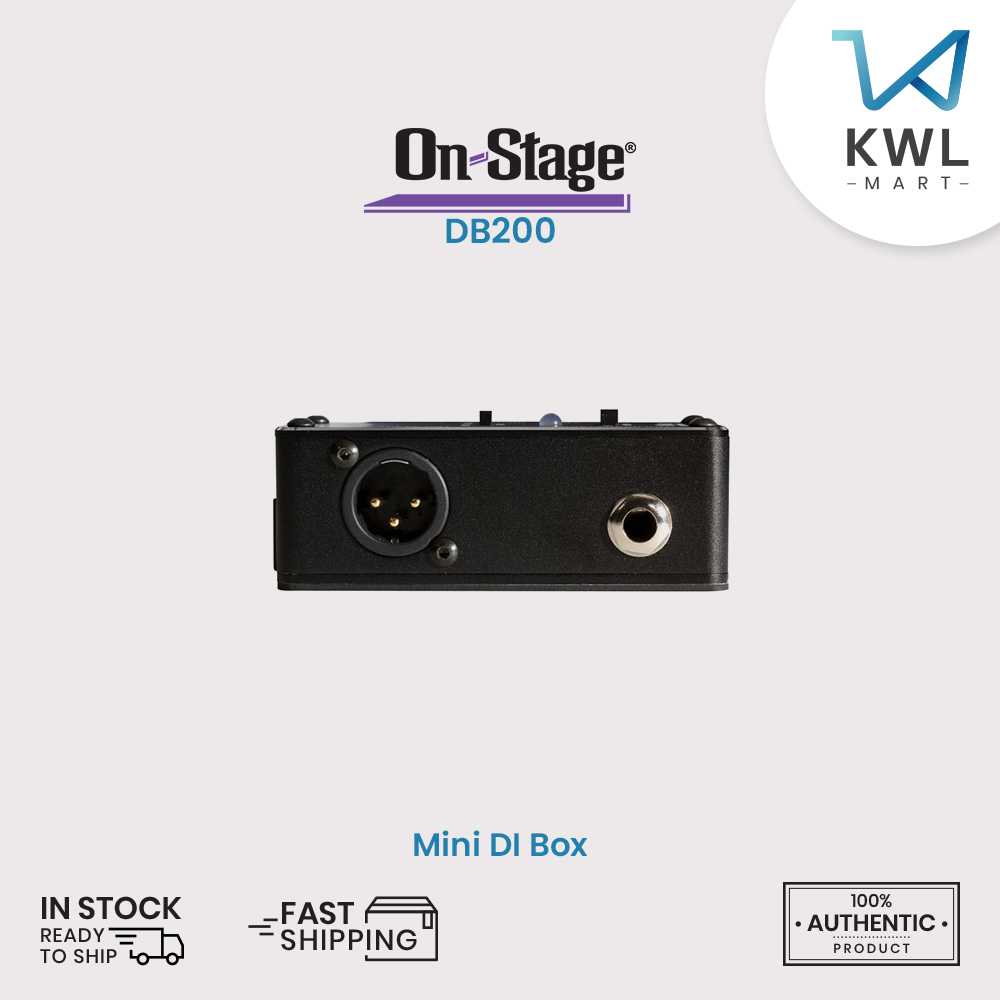

On-Stage DB200 Mini DI Box (Active) With Cabinet Simulator

𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻𝘀:

On-Stage DB200 Mini DI Box converts any high-impedance 1/4″ source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. A cab simulator switch enables sending the input signal through an emulated amp directly to a mixer without using a physical amp. There’s a switch for either +20 dB of gain to boost weak signals or a -20 dB pad to prevent clipping from louder sources. A ground-lift switch defeats ground-loop hum. When not using the DI, the true-bypass switch eliminates the circuitry of the pedal from the signal path. Balanced and unbalanced outputs provide the option to send the signal to an amp, a mixer, or both. This pedal includes hook-and-loop strips for convenient pedalboard mounting. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

𝗙𝗲𝗮𝘁𝘂𝗿𝗲𝘀:

– Accepts a wide range of audio sources including guitars, basses, and keyboards.

– Cab simulator sends the input signal through an emulated amp to a mixer or PA system.

– Compact footprint saves space on pedal boards (includes hook-and-loop mounting strips).

– Gain/pad switch boosts weak signals or prevents clipping.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗣𝗿𝗼𝗽𝗲𝗿𝘁𝗶𝗲𝘀:

Color: Black

Current Draw: 12mA

Dimensions: 3.6″ x 1.5″ x 1.3″

Input Impedance: 1M Ohms

Output Impedance: 1k Ohms

Power Supply: 9V DC, center negative (not included)
